ISC RP048 Green Compact Rigging Pulley for 1/2" Rope


Product Information

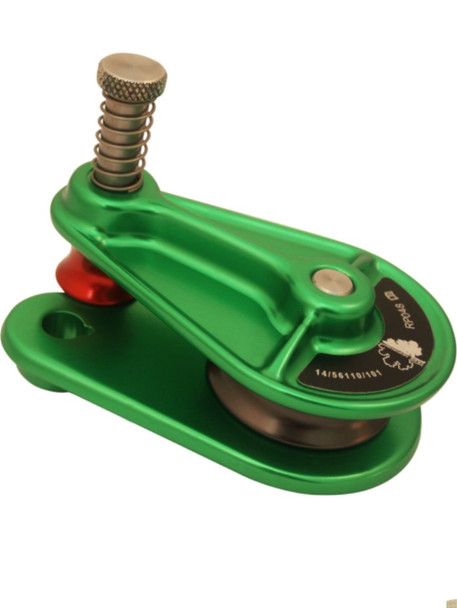

Compact Rigging Pulley- for 13mm (1/2") Rope

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).


  • The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.
  • Working Line (Grey Sheave):
  • 13mm (1/2") - 38kN (8500lbf)
  • Topping Strop (Red Sheave):
  • 16mm (5/8") - 74kN (16650lbf)
  • The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
  • (MBS) Minimum Breaking Strength (kN)85
  • (MBS) Minimum Breaking Strength (lbf)19000
  • Wheel material: Aluminum
  • Body finish: Anodized
  • Approved Standards  CE 0120 Machinery Directive
Current Stock:
Shipping Cost: Calculated at Checkout
Weight: 1.00 LBS
Width: 5.00
Height: 3.00
Depth: 3.00
