Wood-Mizer HR250 Super Horizontal Resaw

Wood-Mizer HR250 Super Twin Blade Horizontal Resaw

Check out Wood-Mizer's MADE IN THE USA Twin Horizontal Band Resaw with Performance Package for high-performance resawing with a minimal footprint.

Designed for high-production lumber and pallet board operations, the HR250 features two horizontal bandsaw blades within one compact head which is ideal for resawing cants, boards, or reclaimed material into two or three pieces with each pass. Powered by two 25HP (18kW) saw wheel motors and two 2HP (.75kW) gear box motors, the HR250 is built to last with heavy-duty construction, premium components, and 28" (710mm) diameter dynamically balanced steel band wheels.

This compact, best in class twin blade horizontal resaw takes your lumber operation productivity to the next level. Saw 16” wide x 12” high material into two or three pieces with each pass. Complete with a Performance Package, this USA made resaw includes high performance blade guide rollers and dual Setworks on a dedicated remote operator control stand floor mounted separately from the saw head.

Operational Features:

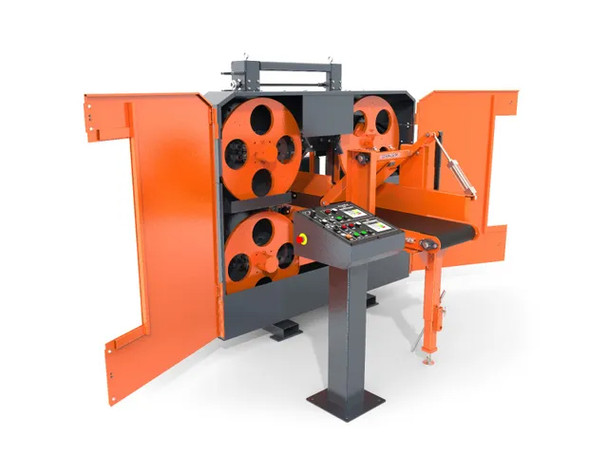

A pedestal mounted Setworks control panel with dual digital blade position controls ensure accurate height positioning of the saw wheels when setting cut thickness. Each blade has its own Setworks panel and is controlled and run independently using the digital controls or manual up/down buttons. Once the blades are adjusted for the desired cut, the blade is engaged and material is fed through the machine. Cants and boards up to 16” wide and 12” high are placed onto the rugged, electric driven conveyor belt with a variable speed feed adjustment from 0 – 90 feet (0 - 27 meters) per minute for optimal processing of various sized and type of material. Pneumatic hold down rollers and an idle top roller keep material secure as it moves through the machine. Material is continually fed through the machine until processing is complete. Blade tension is automatic and controlled by an air-over-oil hydraulic system to maintain proper tensioning and long blade life.

Details:

• Two 25HP (18kW) saw wheel motors and two 2HP (1.5kW) gearbox motors
• Features 2 horizontal bandsaw blades enclosed in 1 compact head
• Dual Setworks with digital blade position controls
• Capacity of 16" wide and 12" high
• Up to 90ft a min variable speed feed rate
• Electric driven conveyor belt
• Automatic blade tensioning
• Pneumatic hold down rollers and idle top roller

Installation Information:

The HR250 super horizontal band resaw ships on a single pallet, can be set up in 2–4 hours, and is easily moved with a forklift for layout flexibility in any production line. With a 1 year warranty, the HR250 resaw is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment. Not sure which resaw is the best option for you business? Contact us today to discuss your specific requirements and payback through labor savings.

Specifications:

• Power Selections - 25HP (18.6kW) 3PH 230V/60Hz or 460V/60Hz 3-Phase Electric
• Max Cant Width - 16"
• Max Cant Height - 12"
• Blade Length - 178"
• Blade Thickness - .042" - .055"
• Blade Width - 1" - 1 1/2"
• Blade Guides - Rollers
• Blade Wheel Diameter 28"
• Blade Wheel Type  - Dynamically balanced steel
• Cutting Heads - Dual Horizontal Stacked Heads
• Controls Configuration - Standalone Pedestal Mounted Control Station
• Feed Speed - 0-90 ft/min
• Feed System - Rubber Conveyor Belt
• Machine Footprint - 95 3/8" wide x 107 5/8" long
